★ Type-C Driver-Free, Plug & Play
★ Dual-axis Rotatable Back Clip
★ PTT One-touch Intercom
★ Comfortable for Long-time Wear
Product Introduction

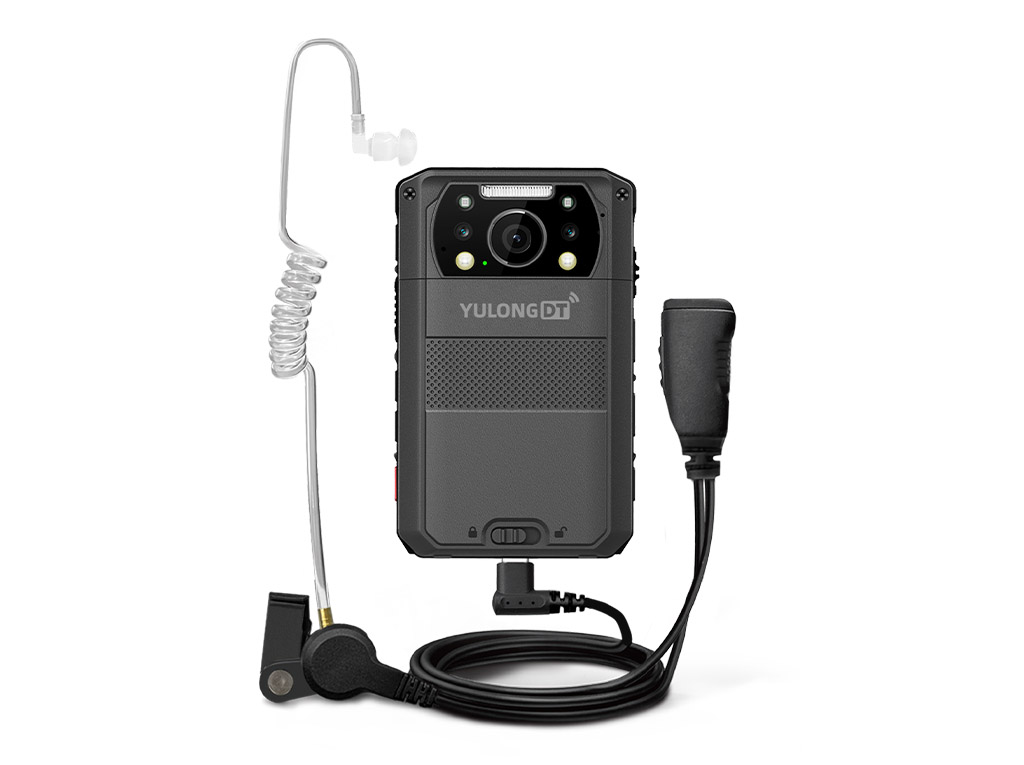

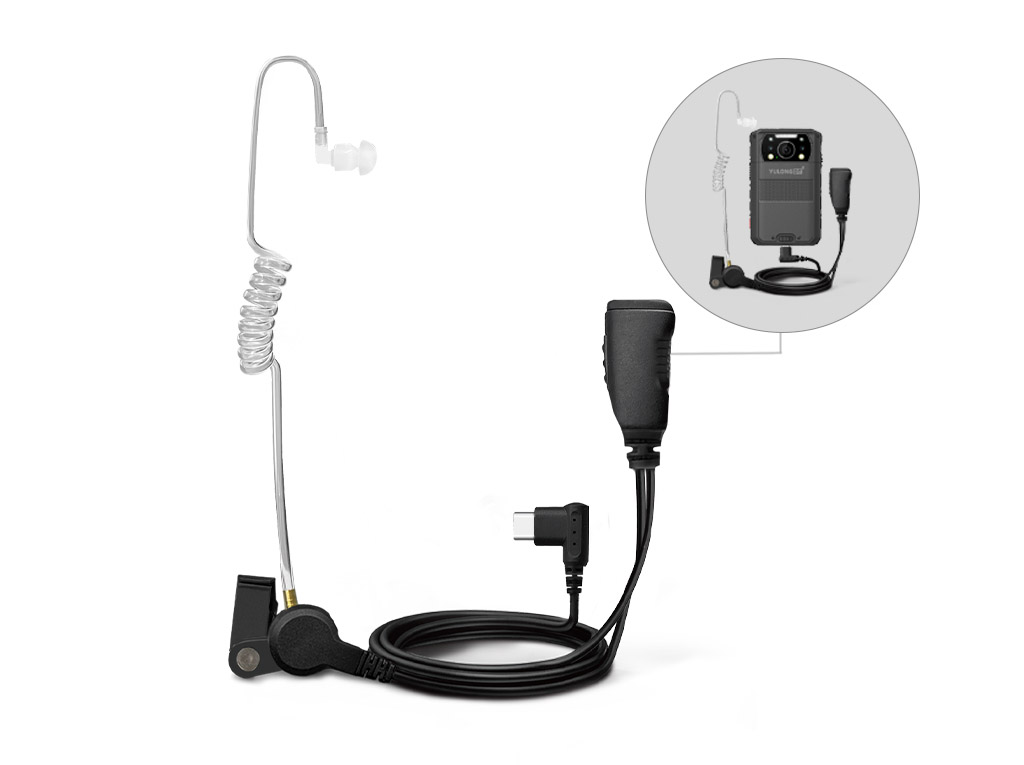

Digital stereo PTT earphone, compatible with YULONG body worn camera for clear instant field communication, ideal for field duty operations.
Product Highlights
High-Performance Digital Audio Chip
Built-in 2-channel 24-bit DAC/ADC, with a sampling rate of 96kHz Delivers clear and faithful audio for recording and intercom
Type-C Driver-Free, Plug & Play
Compliant with USB1.1 full-speed audio protocol, standard Type-C connector Supports hot plugging, compatible with mainstream body worn cameras and mobile terminals
Dual-axis Rotatable Back Clip
Equipped with high-sensitivity clip-on microphone to keep the speaking angle stable. Dual-axis rotating structure for flexible adjustment.

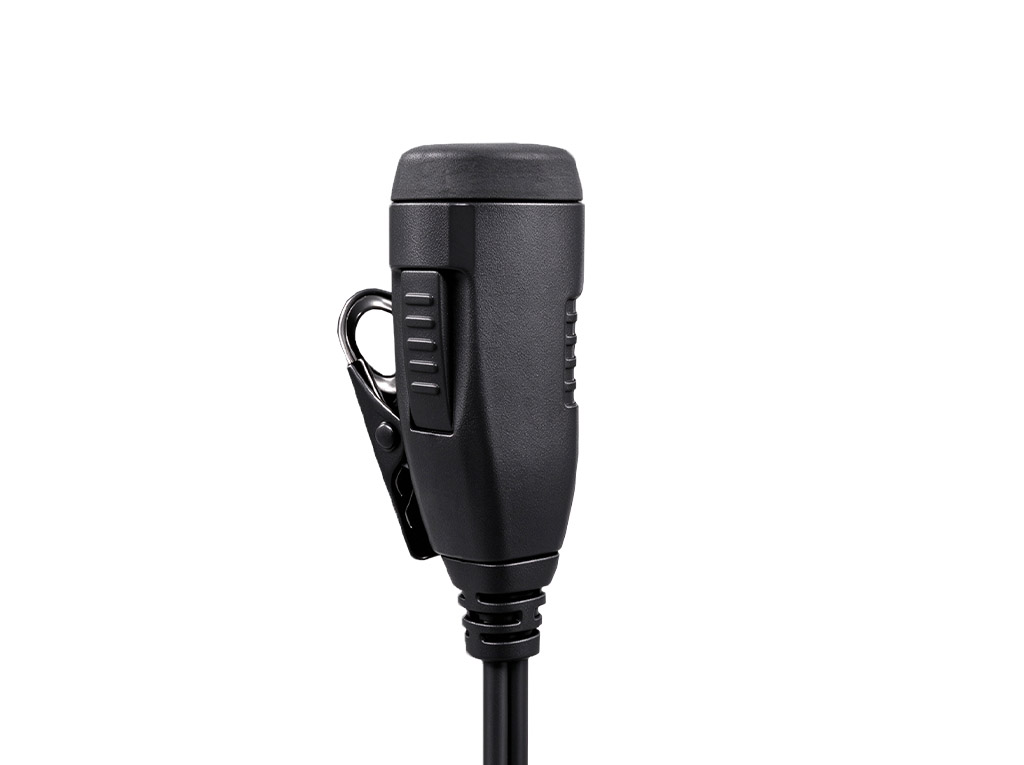

PTT One-touch Intercom
One-touch blind operation with single hand, no need to operate the device. Enables efficient and convenient communication.
Comfortable for Long-time Wear
It adopts a transparent air tube paired with ergonomic silicone ear tips. It fits the ear shape perfectly, offering comfortable all-day wear without pressure.
Product Specifications
Item | Specification |
Weight | 33g (including cable, microphone and ear tip) |
Length | (PTT to connector: 80cm) + (PTT to sound outlet: 37.5cm)+ (Air tube: |
PTT | Supported |
Interface | Type-C |
MIC Size | 6.0*5.2mm |
MIC Frequency | 20~16000Hz |
MIC Sensitivity | -42dB+3dB@94dB SPL |
MIC Impedance | 2.2KΩ |
SPK Size | 16mm |
SPK Frequency | 200~5000Hz |
SPK Sound Pressure | 90dB±3dB |
SPK Impedance | 90Ω±10% |
Operating Temp. | -20℃~60℃ |
Storage Temp. | -40°C~85°C |
