★ Simultaneous charging and data acquisition for 10 body‑worn cameras, ≥4 MB/s per‑channel transfer rate
★ 4‑bay SATA3.0, up to 40 TB total; user‑swappable hard disks secure evidence data

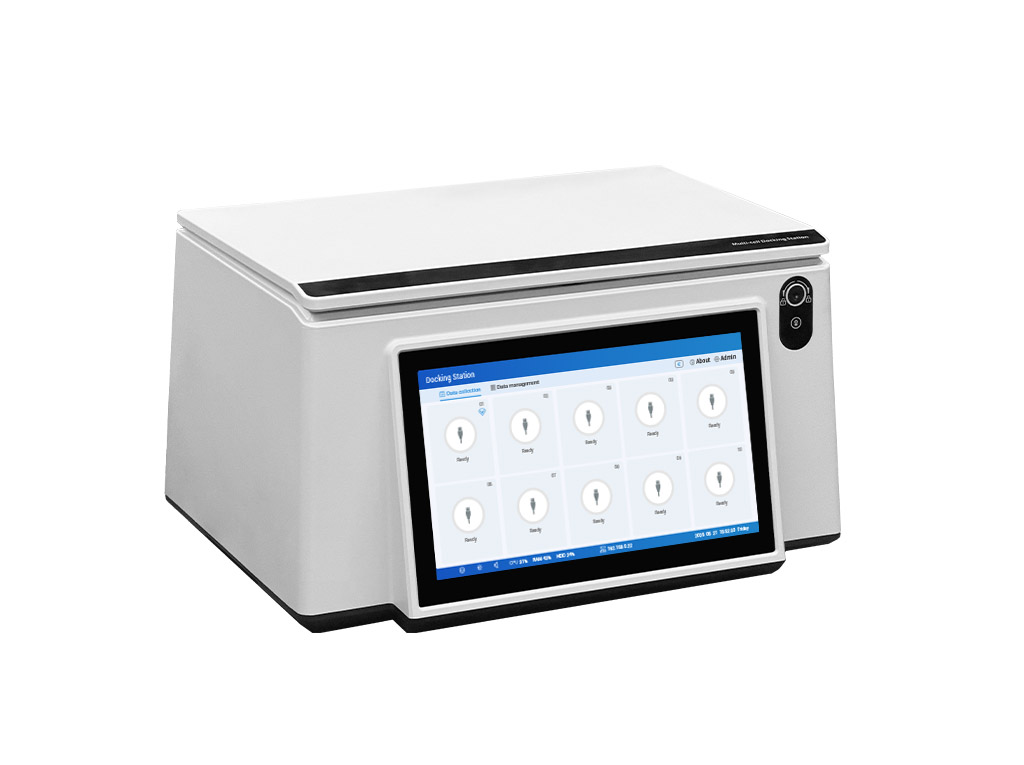

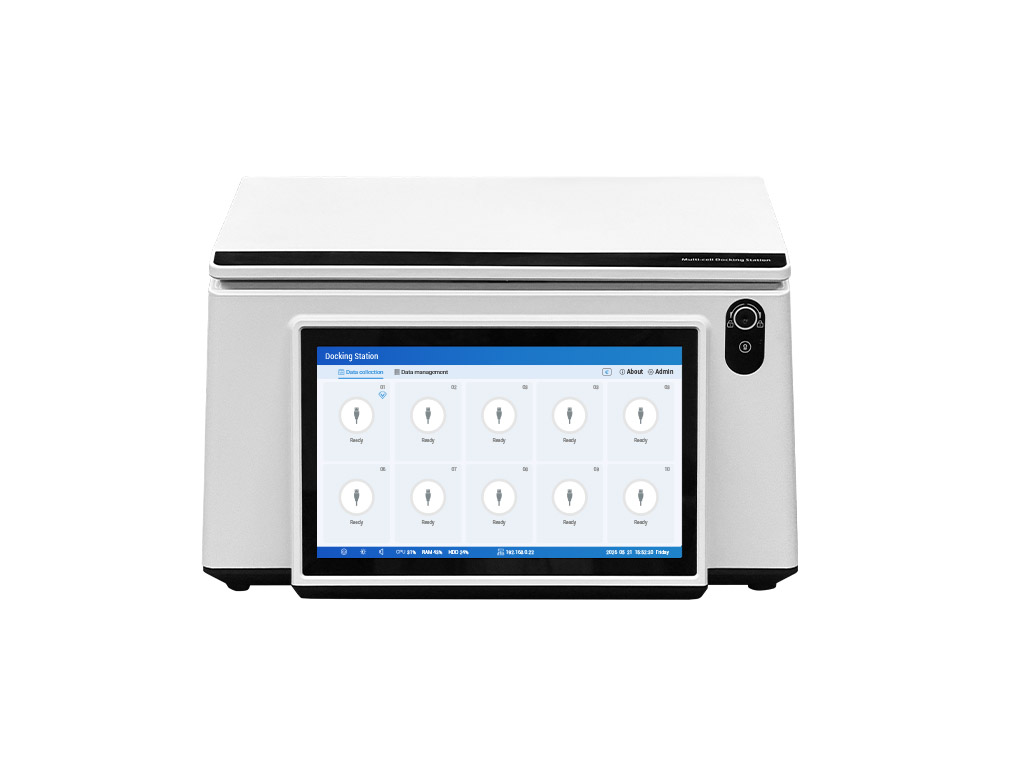

★ 12‑inch 5‑point IPS touch screen, Real‑time collection/charging/system status display, 4K video playback
★ Flame‑retardant plastic enclosure, dual‑fan intelligent cooling, physical‑lock collection bay
★ Dedicated management platform & FTP compatible; WEB remote O&M, multi‑level permission management
Main Functions
Data Collection & Charging
Simultaneous high-speed data collection and charging over 10 channels.
Priority-acquisition port, resume-from-break point transmission, auto-clearance and intelligent over-charging alert.
Compliant with other brand body-worn cameras.
Data Storage & Management
4-bay high-capacity storage.
Automatic file categorization by user ID, device ID and file type.
Configurable retention period, important-file tagging and remark-based search.
Search & Playback
Multi-condition combined filtering. H.265 / H.264 4K video playback with fast-forward, slow-motion and snapshot functions.
Remote search and playback available via management platform and WEB client.

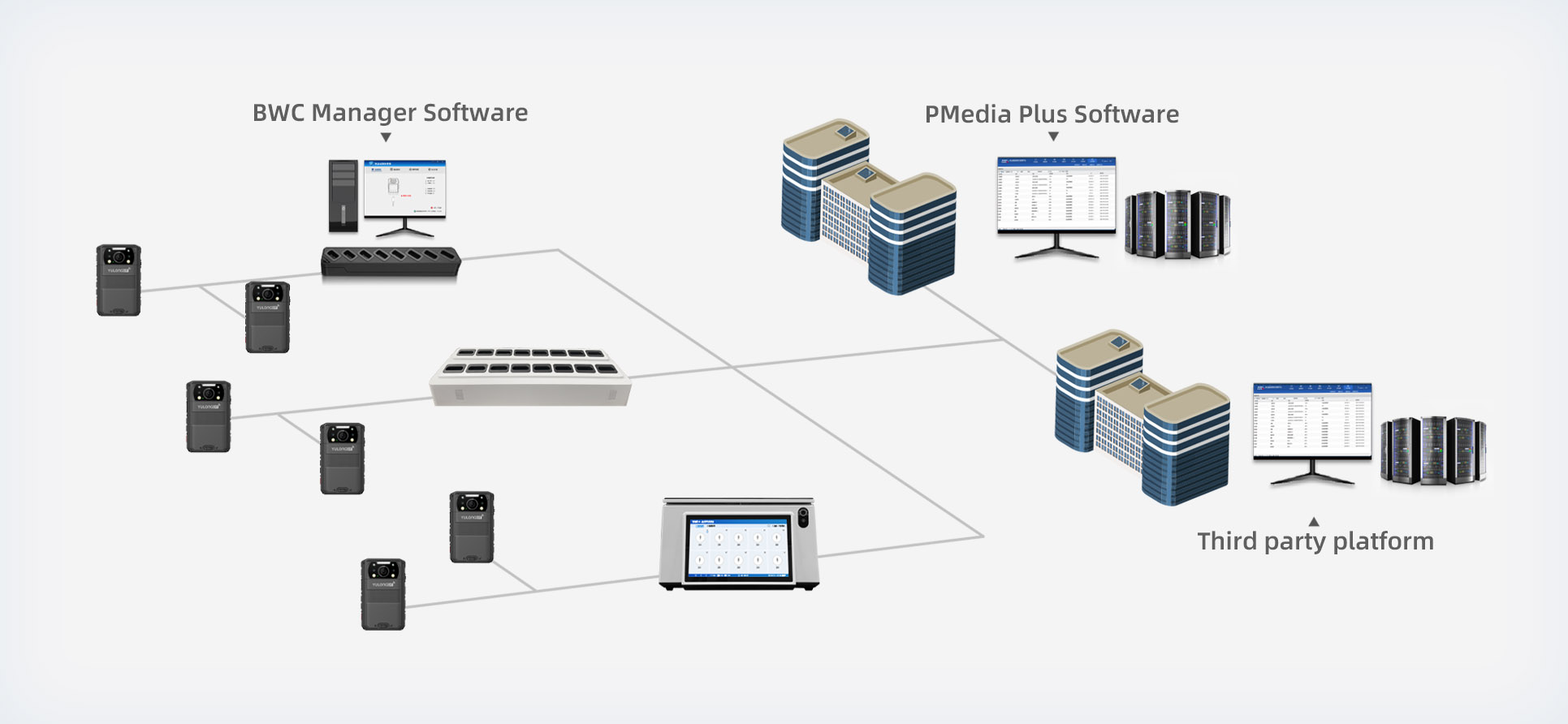

Network & Platform
Gigabit Ethernet with IPv6 support.
Multiple communication protocols supported.
Auto upload to management platform in instant, scheduled or manual trigger modes.
Security & Permission
Hierarchical access control and user registration binding.
Process whitelist & blacklist, USB peripheral restriction, full-process system log audit to secure data assets.
Item | Specification |
Processor | Octa-core 2.4 GHz, 8 nm, built-in NPU |
Video Decoding | H.265 / H.264 |
Operating System | Android 13.0 |
Display | 12-inch IPS capacitive 5-point touch screen |
Hard Disk | Max. 4 × 10 TB 3.5-inch SATA3.0 HDD |
Interfaces | 10 × Type-C / Mini-USB |
Network | Gigabit RJ45, IPv6 |
Power Supply | 300 W ATX, AC 100-240 V |
Cooling | Dual-fan intelligent temperature control |
Dimensions | 445 × 340 × 255 mm |
